DA Series

Aiphone

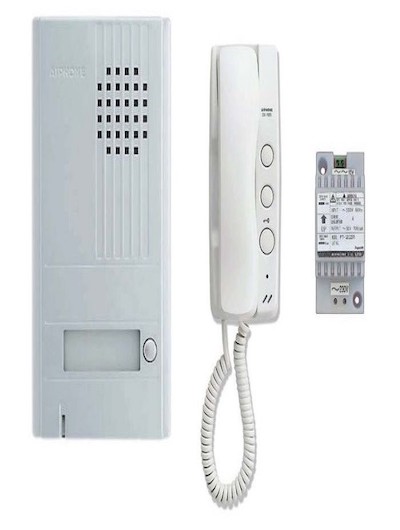

Single & Multi-Tenant Handset Intercom

A convenient box set complete with tenant station, a 1-call entrance station, and a power supply (up to 3 more tenant stations can be added for a full 1 x 4 system)

Make Enquiry

Download Brochure

Product Enquiry

"*" indicates required fields

Specifications

Power Source: 15V AC – use PT-1211C
Communication:Handset (full-duplex)
Door Release: 9.5~20V AC, 70Ω or higher resistance – use EL-12S
Wire Type: Entrance Station to Tenant Station: 2-cond., overall shield – use Aiphone #822202 or 2-cond., low cap, PE insulation, solid, non-shielded – use Aiphone #871802
Power Supply to Tenant Station: 2-cond., low cap, PE insulation, solid, non-shielded – use Aiphone #871802

Distance

Power Supply to Entrance Station or Door Strike (cumulative): 360′(22AWG) 1,020′(18AWG)
Power Supply to Tenant Station: 180′(22AWG) 510′(18AWG

Features

A convenient box set complete with tenant station, a 1-call entrance station, and a power supply (up to 3 more tenant stations can be added for a full 1 x 4 system)

2-wire system is quick and easy to install

Door release powered by door station without the need of an additional transformer

Backlit directory on door station

Option button to control an external device

Call tone volume control with mute indicator
